Three months of palpitations

62-year-old woman. Three months of the heartbeat stumbling, with an occasional sensation that it stops

No cardiac history. Drinks four coffees a day. No syncope, no chest pain, no breathlessness.

Stage 1 of 2

The pulse is irregular at rest. Examination is otherwise normal. Potassium, magnesium and thyroid function are normal, and an echocardiogram shows a structurally normal heart.

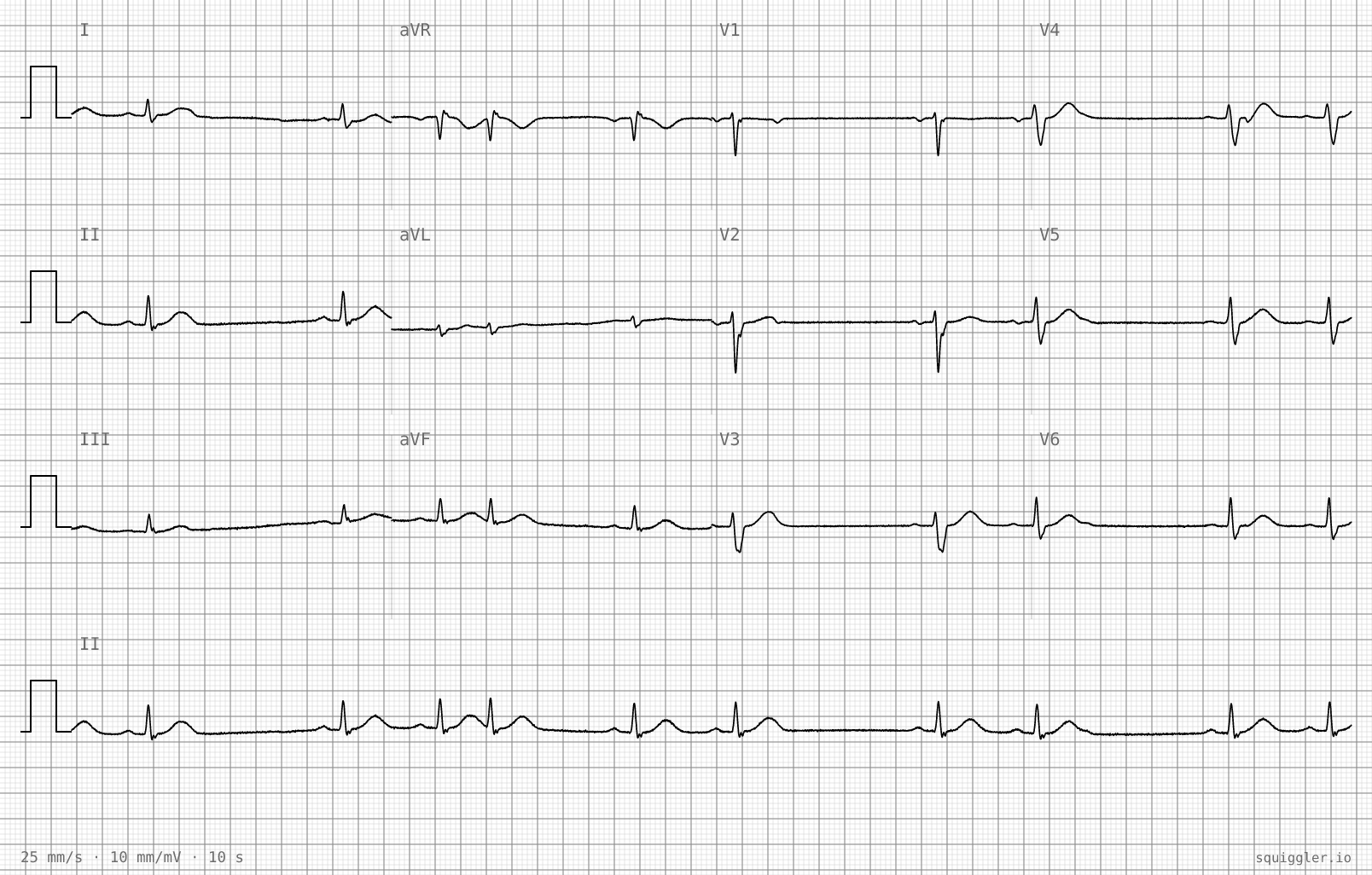

Tracing 1 of 2 for the quiz “Three months of palpitations”. — Twelve-lead in clinic, 25 mm/s, 10 mm/mV. Open this tracing in the studio

Bloods

TSH (m IU/L): 1.9
Magnesium (mmol/L): 0.88
Potassium (mmol/L): 4.3

What does this tracing show?

AFrequent atrial ectopics, with occurence of blocked ectopics Correct answer Your answer
BMobitz II second-degree atrioventricular block Your answer
CIntermittent sinus arrest Your answer
DFrequent ventricular ectopics Your answer

Which feature separates the pauses here from second-degree atrioventricular block?

AEach pause measures two sinus cycles Your answer
BProgressive PR lengthening into each pause Your answer
CA premature P wave distorting the T wave before each pause Correct answer Your answer
DThe pauses fall in a fixed ratio to the conducted beats Your answer

Stage 2 of 2

She is started on bisoprolol 2.5 mg daily and reviewed six weeks later. She reports the palpitations are much less frequent. Her pulse is regular at 78. This tracing is recorded at that visit.

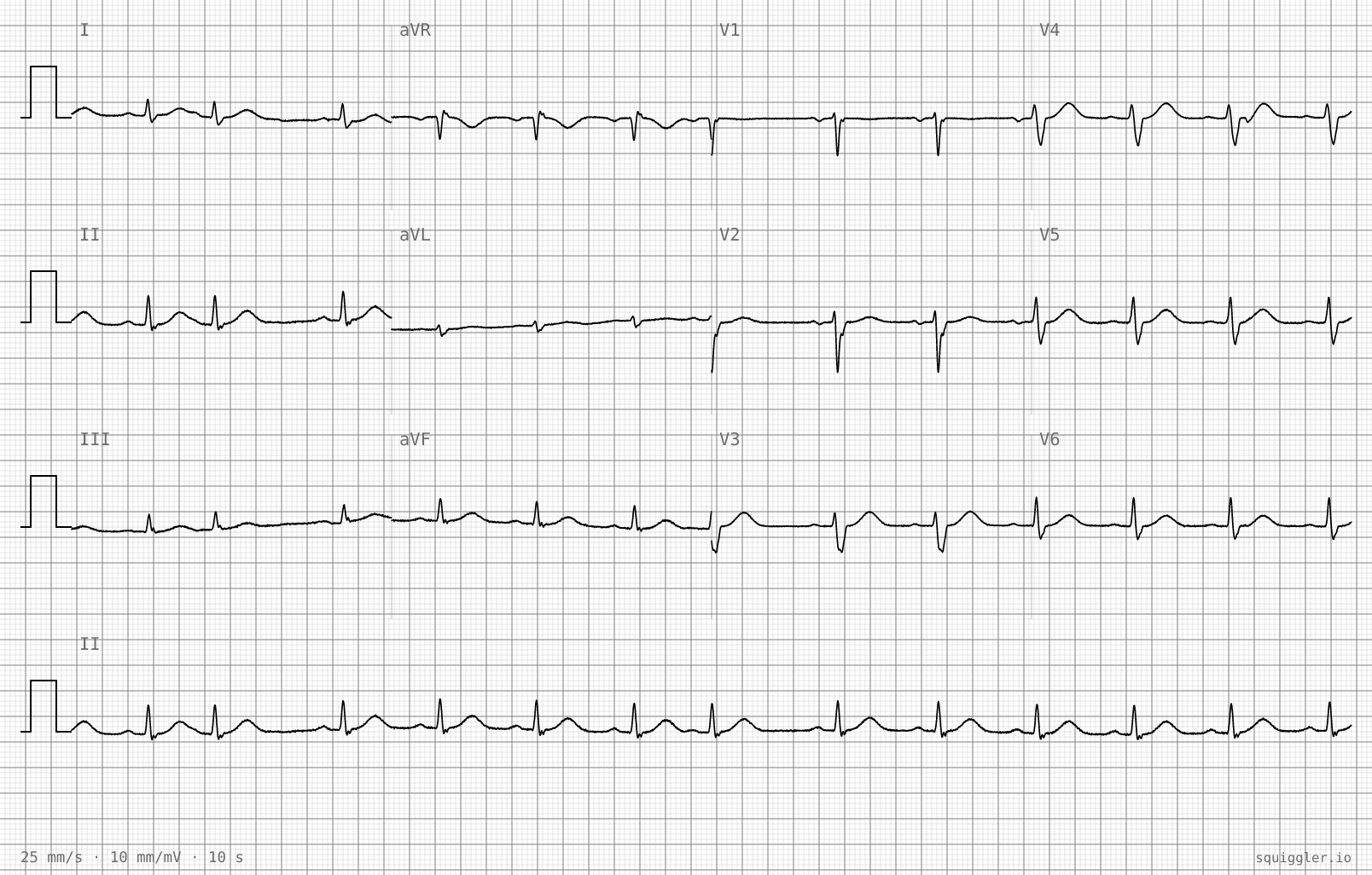

Tracing 2 of 2 for the quiz “Three months of palpitations”. — Twelve-lead at review, 25 mm/s, 10 mm/mV. Open this tracing in the studio

Observations

HR: 78
SpO₂ (%): 98
Respiratory rate: 14
Temperature (°C): 36.6
Systolic BP (mmHg): 124
Diastolic BP (mmHg): 74

What has changed between the two tracings?

AThe same number of atrial ectopics, now all conducted Your answer
BFewer atrial ectopics, and those that remain are conducted Correct answer Your answer
CThe second-degree atrioventricular block has resolved Your answer
DThe ectopic focus has moved below the atrioventricular node Your answer

Her pulse is faster at review than before the beta blocker was started. Why?

AThe dose is too low to have taken effect Your answer
BThe sinus node is discharging faster than before Your answer
CThe beta blocker has speeded conduction through the atrioventricular node Your answer
DLess automaticity leads to less PACs Correct answer Your answer

Diagnosis

Frequent atrial ectopy with non-conducted atrial ectopic beats, suppressed by beta blockade

Premature atrial and ventricular complexes frequently lead to beats that aren't palpable or heard on auscultation. This effect can be even more pronounced when PACs are non-conducted.

Here, beta blockers can paradoxically lead to higher pulse due to suppressed automaticity and regularisation of the rhythm.
