Collapse in the waiting room, three days into a diarrhoeal illness

The case

34-year-old woman. Collapse in the waiting room, three days into a diarrhoeal illness

Takes citalopram 40 mg daily for depression. Three days of vomiting and diarrhoea after a family barbecue, eating and drinking almost nothing. Given ondansetron 4 mg intravenously at triage an hour ago.

On arrival

HR
92
SpO₂ (%)
98
Respiratory rate
18
Temperature (°C)
36.8
Systolic BP (mmHg)
104
Diastolic BP (mmHg)
62

Stage 1 of 2

Nkiru Eze slid off her chair in the waiting room and was unresponsive for about twenty seconds before coming round on the floor, confused for a minute and then back to herself. She had been put on a monitor while she waited for fluids, and this is the strip the nurse printed from it. She is now awake, apologetic and asking to go home.

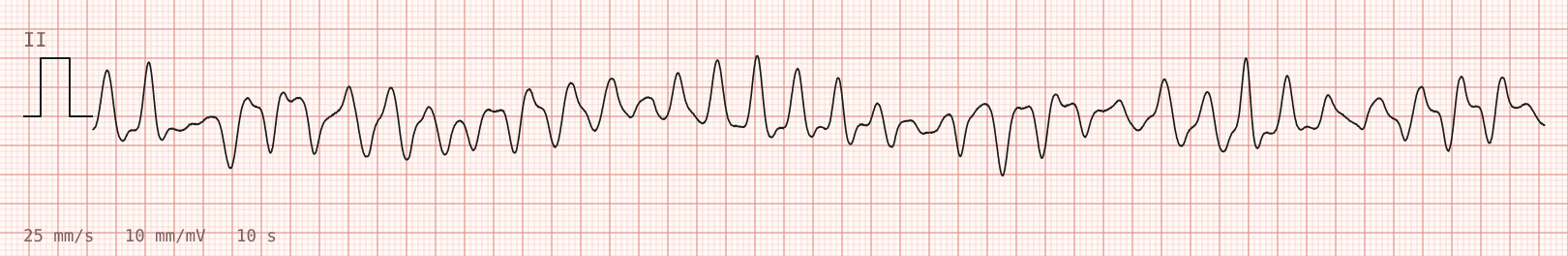

Tracing 1 of 2 for the quiz “Collapse in the waiting room, three days into a diarrhoeal illness”.
Monitor strip printed from the moment of the collapse, 25 mm/s, 10 mm/mV. Open this tracing in the studio
What does the strip show?
She has a pulse and is talking. What next?

Stage 2 of 2

Potassium is 2.9 mmol/L, magnesium 0.58 mmol/L and creatinine 104 umol/L against a baseline of 62. She has had no further episodes on the monitor. This twelve-lead was recorded while the bloods were being chased.

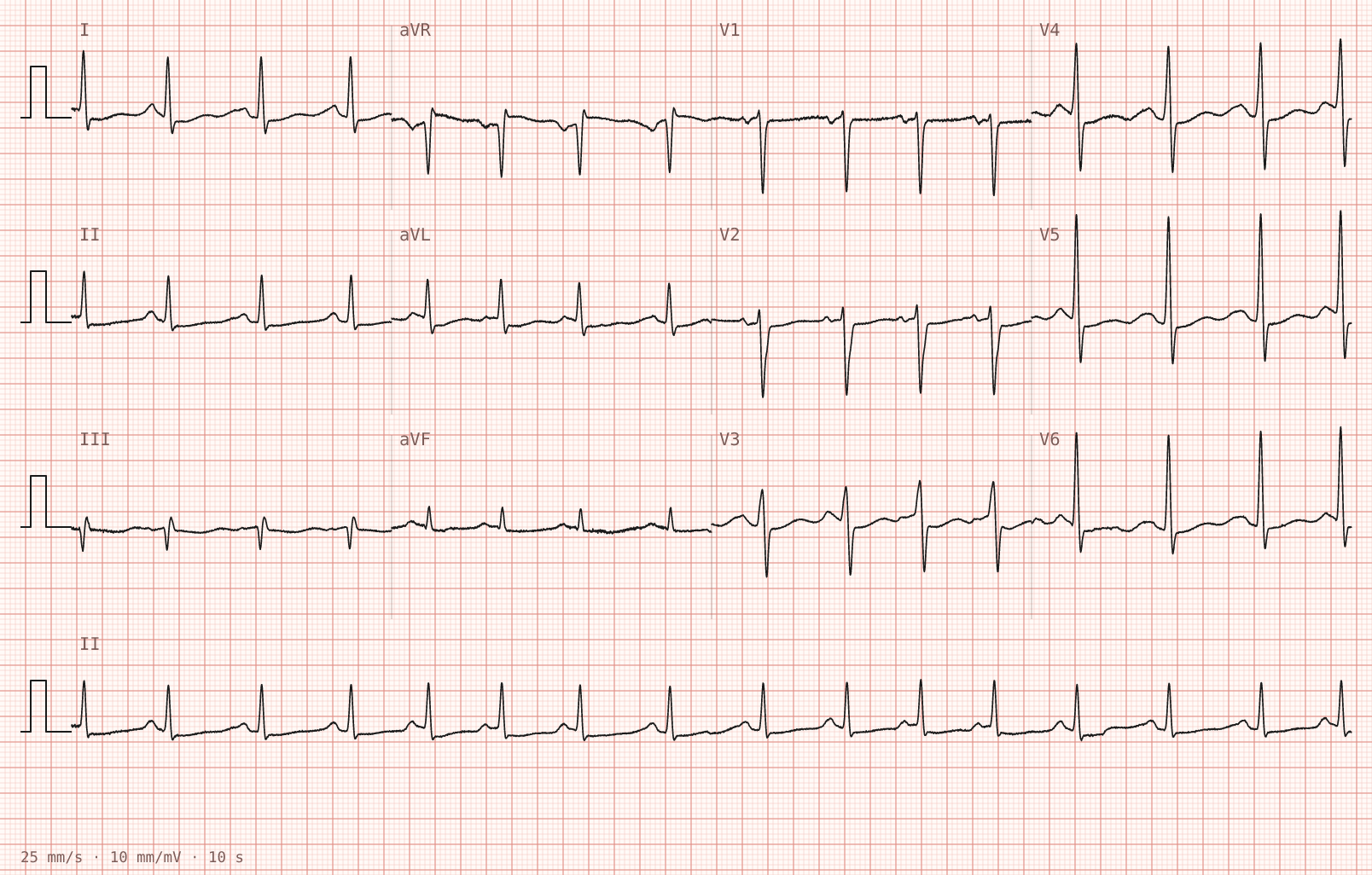

Tracing 2 of 2 for the quiz “Collapse in the waiting room, three days into a diarrhoeal illness”.
Twelve-lead recorded after the episode, 25 mm/s, 10 mm/mV. Open this tracing in the studio

Observations

HR
92
SpO₂ (%)
98
Respiratory rate
17
Temperature (°C)
36.8
Systolic BP (mmHg)
106
Diastolic BP (mmHg)
64

Bloods

Magnesium (mmol/L)
0.58
Potassium (mmol/L)
2.9
Creatinine (umol/L)
104
Calcium, adjusted (mmol/L)
2.31
What does the twelve-lead show?
Which of her drugs has to stop?

Diagnosis

Torsades de pointes from acquired long QT
