Infant, four months

The right ventricle still tall in V1, deep q waves in III and aVF, the T inverted in V1–V3, and a rate near 140.

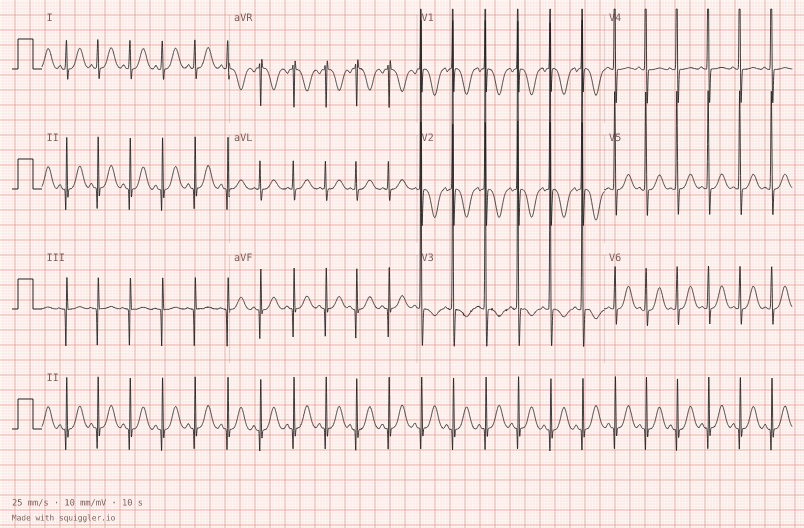

Infant, four months — synthetic ECG on millimetre paper — Synthetic tracing, generated by Squiggler. Not a patient recording.

Open this tracing in the studio

The spec that drew it

Rhythm: sinus
Format: Twelve-lead

More in Children
